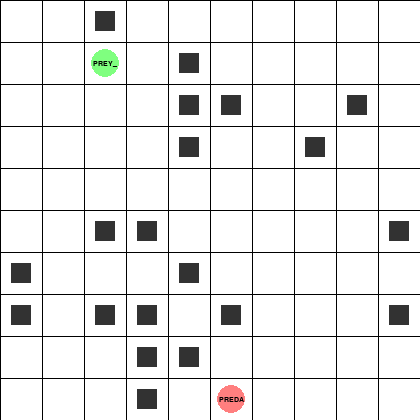

_{A trained DQN predator (speed 2) running down a speed-1 prey around obstacles until capture, from the ready-made plug-and-play/configs/dqn_1v1 experiment.}

A deterministic, modular, research-grade multi-agent predator–prey environment for studying coordination, pursuit–evasion, and emergent behavior in Multi-Agent Reinforcement Learning. It is not just a simulation, it is a controlled experimental laboratory: fully inspectable dynamics, pluggable perception and incentives, and reproducibility enforced by construction rather than assumed.

---

🎬 Showcase: four scenarios, one unchanged core

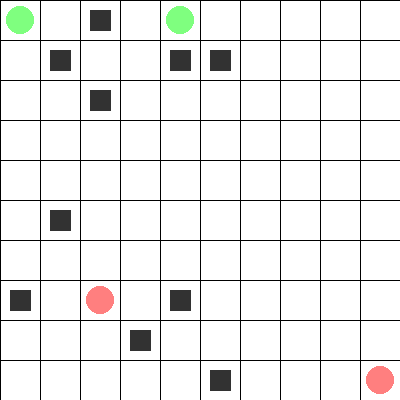

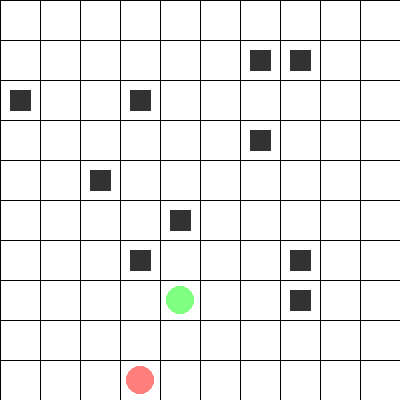

1 predator vs 1 prey · 10×10 the hero's 1v1 roster, untrained and at speed 1	2 predators vs 2 prey at double speed · 10×10 speed/stamina via SpeedWrapper

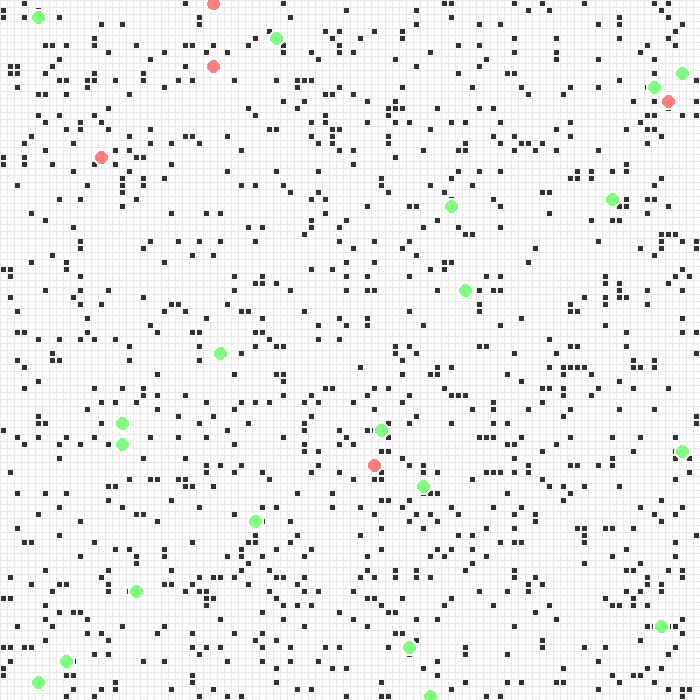

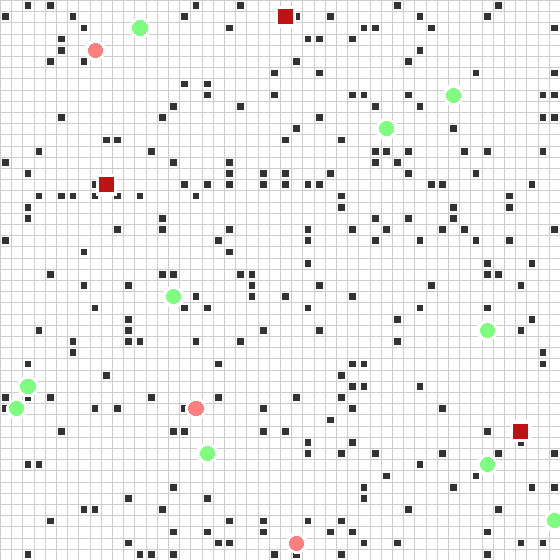

Two predator teams vs 10 prey · 50×50 cardinal movement (red) vs diagonal movement (pink)	5 predators vs 20 prey · 100×100 1,000 obstacles

The clip above shows a trained policy on one configuration; these four show the range of configurations themselves, all under untrained, uniformly random actions. Read the first tile against the hero above and the difference between learned pursuit and random motion is the whole point of the testbed. Each clip runs a few short episodes: an episode ends at the first capture, then the next begins with a fresh layout. Grid size, populations, obstacle density, and per-agent speed are all YAML keys, so the same unmodified core produces every one of these. Colours and shapes are the environment's own (predators on the red hue, prey on green, shade and shape separating subteams). Regenerate them with python .github/scripts/make_showcase_gifs.py.

One caveat on the third clip: the two movement geometries are the shipped discrete_5 and cross action spaces, but assigning a different one per team is composed in the generator script rather than selected from YAML. The core holds a single global action space, and per-team assignment is not yet configurable from YAML.

---

❓ Why PPAGE

Most MARL environments mix environment logic with learning code, hide important transition mechanics, and make reproducibility fragile, so experimentation happens by hacking internals. PPAGE enforces something stricter:

Environment dynamics → Perception → Incentives → Learning

Each layer is isolated by construction:

• Environment dynamics defines what can happen (immutable core)
• Perception defines what agents know (observation plug-ins)
• Incentives define what agents optimize (reward plug-ins)
• Learning defines how they adapt (algorithm baselines)

Because the layers only meet through narrow interfaces, each one can be studied, and swapped, independently. An experiment is fully determined by its YAML configuration and a random seed: identical configuration yields an identical trajectory, and this is verified by a dedicated determinism test rather than merely documented.

The goal is not realism. The goal is clarity, modularity, and scientific control, making MARL mechanistically understandable rather than opaque.

---

⚡ Quickstart

Option 1: install from PyPI (library use)

Use the environment and baseline algorithms from your own code:

pip install ppage               # environment + tabular baselines (IQL, CQL, Mixed)
pip install "ppage[baselines]"  # adds PyTorch for DQN, ActorCritic, A2C, A3C

from ppage.core.agent import Agent
from ppage.core.gridworld import GridWorldEnv

env = GridWorldEnv(
    agents=[
        Agent(agent_type="predator", agent_team="predator_1", agent_name="pred_1"),
        Agent(agent_type="prey", agent_team="prey_1", agent_name="prey_1"),
    ],
    size=8,
    seed=42,
)
result = env.reset()

Option 2: clone the repository (ready-made experiments)

The YAML-driven experiment runners live in plug-and-play/, which ships with the repository, not the pip package. The package uses a standard src/ layout, so an editable install makes ppage importable without setting PYTHONPATH.

git clone https://github.com/UHUMALAB/PPAGE.git
cd PPAGE

python -m venv .venv
source .venv/bin/activate        # Windows: .venv\Scripts\Activate.ps1

pip install -e ".[baselines]"   # plain `pip install -e .` skips the PyTorch baselines

# Run the default experiment (3 predators vs 3 prey, IQL, plug-and-play/configs/experiment.yaml)
python plug-and-play/scripts/run_from_config.py

# Or one of the ready-made DQN experiments
python plug-and-play/scripts/run_dqn.py --config-dir plug-and-play/configs/dqn_1v1

All experiments are launched from the repository root. For a five-minute walkthrough, see QUICKSTART.md; for the full guided version, the docs quickstart.

Running the tests

pip install -e ".[dev,baselines]"
python -m pytest tests/ -q

CI (.github/workflows/ci.yaml) runs this suite on Python 3.10/3.11/3.12 for every push and PR to main/master/STRP, and a core-guard job fails any PR that touches core/ (see For Contributors and Students). The Black/flake8/pylint lint job is currently disabled in CI; run them locally via pre-commit.

---

🧭 Design Philosophy: Accessible by Default, Versatile by Design

PPAGE deliberately balances two properties that usually trade off against each other:

• Accessibility — a first experiment should cost minutes, not days. pip install ppage, one plug-and-play/ folder where runnable scripts sit next to the YAML configs they consume, and experiment changes that never require touching Python.
• Versatility — every scientific axis of the experiment is swappable. What agents perceive (observations), what they optimize (rewards), what their actions mean (action spaces), and how they learn (algorithms) are each an independent plugin behind a registry.

The bridge between the two pillars is the registry pattern: a plugin registered once becomes a one-line YAML option forever. Extending the system is exactly as accessible as using it.

flowchart TB
    P["<b>PPAGE</b><br/>accessible by default · versatile by design"]
    P --> A["🚪 <b>Accessibility</b><br/><i>running in minutes</i>"]
    P --> V["🔧 <b>Versatility</b><br/><i>swap any axis of the experiment</i>"]
    A --> A1["pip install ppage"]
    A --> A2["plug-and-play/<br/>scripts + configs, side by side"]
    A --> A3["YAML-only experiment changes<br/>no Python required"]
    V --> V1["👁 observations<br/>5 shipped"]
    V --> V2["🎯 rewards<br/>composable stack"]
    V --> V3["🕹 actions + wrappers<br/>3 shipped"]
    V --> V4["🧠 algorithms<br/>7 baselines"]
    V1 --> R
    V2 --> R
    V3 --> R
    V4 --> R["🔌 <b>registries</b><br/>register a plugin once →<br/>it is a one-line YAML option forever"]
    R -.->|"which is why extending<br/>stays this easy"| A3

Loading

Concretely, each axis ships with reference implementations and stays open for yours:

Axis	Shipped	Examples of what you could add
Observations	default, local_only, local_radius, absolute, relative	noisy sensors, field-of-view cones, line-of-sight occlusion, frame-stacking memory, CNN-ready grid patches
Rewards	base, predator_distance, survival (composable)	shared-credit capture splits, encirclement shaping, energy costs tied to stamina, time-decayed bonuses
Actions	discrete_5, cross, speed_discrete_5 (+ SpeedWrapper)	king moves, momentum actions, wait-and-observe, macro-actions
Algorithms	IQL, CQL, MixedTrainer, DQN, ActorCritic, A2C, A3C	game-theoretic learners (JAL-GT/minimax-Q, WoLF-PHC, fictitious play), CTDE methods (VDN, QMIX)

Each row has a written contract (docs/specs/); the observation, reward, and action rows also have a step-by-step guide (docs/guides/); see Design Philosophy in the docs for the full extension menu with difficulty ratings.

For the configuration range this buys you (grid size, populations, obstacle count, per-agent speed, and movement geometry), see the Showcase at the top of this README.

---

🏗 Architecture: Two Components

1️⃣ ppage: The Environment

Defines the world:

• Grid dynamics, agent movement, capture logic, episode termination (core/, immutable)
• Observation plug-ins: perception (observations/)
• Reward plug-ins: incentives (rewards/)
• Action-space plug-ins: what an agent's action integers mean (actions/)
• Wrappers: cross-cutting mechanics layered on top of the base env, e.g. per-agent speed/stamina (wrappers/, applied last in the build chain)
• Registries: the only sanctioned way to wire a plug-in into an experiment (registry/)

The shipped implementations for each plug-in category are listed in the Design Philosophy table above.

2️⃣ ppage.baselines: The Learning Algorithms

• IQL: Independent Q-Learning (tabular)
• CQL: Centralized Q-Learning (tabular)
• MixedTrainer: per-team algorithm assignment (e.g. CQL predators vs IQL prey)
• DQN: Deep Q-Network (PyTorch, generic observation encoder, replay buffer, Double/Dueling variants)
• ActorCritic: one-step online actor-critic (PyTorch, policy-gradient)
• A2C: n-step advantage actor-critic (PyTorch)
• A3C: asynchronous A2C across worker processes (PyTorch, Hogwild)

See src/ppage/baselines/README.md for the algorithm contract and when to use each one.

Algorithms interact with the environment only through:

env.reset()
env.step(actions)

They never access internal state directly. This guarantees structural integrity: swapping what an agent perceives, optimizes, or does never requires touching how it learns, and vice versa.

---

📂 Repository Structure

src/
└── ppage/                    # Environment (the installable library)
    ├── core/                 # Immutable environment dynamics (maintainers only)
    ├── observations/         # Perception plug-ins
    ├── rewards/              # Incentive plug-ins
    ├── actions/              # Action-space plug-ins
    ├── wrappers/             # Cross-cutting mechanics (e.g. SpeedWrapper)
    ├── registry/             # Safe plug-in selection
    └── baselines/            # Learning algorithms
        ├── IQL/  CQL/  MIXED/  DQN/  AC/  A2C/  A3C/
        └── registry/         # Algorithm name -> class

plug-and-play/                # Start here: runnable entry points
├── scripts/                  # Experiment runners (run_from_config, run_dqn, ...)
└── configs/                  # YAML experiment definitions
    ├── env.yaml, agents.yaml, observations.yaml, rewards.yaml, actions.yaml
    ├── experiment_{iql,cql,mixed,dqn,actor_critic,a2c,a3c}.yaml
    ├── dqn_1v1/, dqn_speed{1,2,3}/, d3qn/    # ready-made experiment sets
    └── demo_plus/, demo_diagonal/, demo_speed/   # movement demos

tests/                        # pytest suite: registries, plugin contracts,
                               # end-to-end training, architecture rules

Core environment dynamics is stable infrastructure. Observations, rewards, actions, and algorithms are the intended extension points.

---

🧪 What You Can Study With This

• Emergent cooperation between predators
• Coordination failures
• Reward shaping effects
• Partial observability impact
• Centralized vs decentralized learning
• Constraint-induced coupling (speed, stamina)
• Credit assignment challenges

This environment is meant for MARL research, undergraduate research labs, algorithm benchmarking, teaching reinforcement learning, and controlled ablation experiments.

---

👩‍🎓 For Contributors and Students

You are encouraged to:

• Implement new reward functions
• Design new observation schemes
• Design new action spaces or wrappers
• Add new learning baselines
• Run structured experiments and reproducible ablations

You are not expected to modify core environment dynamics; this is enforced automatically: a CI check fails any pull request that touches src/ppage/core/. See CONTRIBUTING.md for the full contribution rules, and docs/git-workflow.md for branching, commits, and how to open a PR.

This mirrors how research infrastructure is structured in practice.

---

📜 Citation

This repository ships a machine-readable CITATION.cff; GitHub's "Cite this repository" button uses it. BibTeX equivalent:

@software{ppage,
  author       = {Muhammad Ahmed Atif and Nehal Naeem Haji and Muhammad Affan and Areesha Kashif and Musab Kasbati and Afshad Yazdi Sidhwa},
  title        = {Predator-Prey Archetype Gridworld Environment},
  year         = {2026},
  version      = {0.9.2},
  doi          = {10.5281/zenodo.21833286},
  url          = {https://github.com/UHUMALAB/PPAGE},
  note         = {A deterministic modular testbed for Multi-Agent Reinforcement Learning}
}

---

⚖️ License

Apache License 2.0
