ckanext-dimred

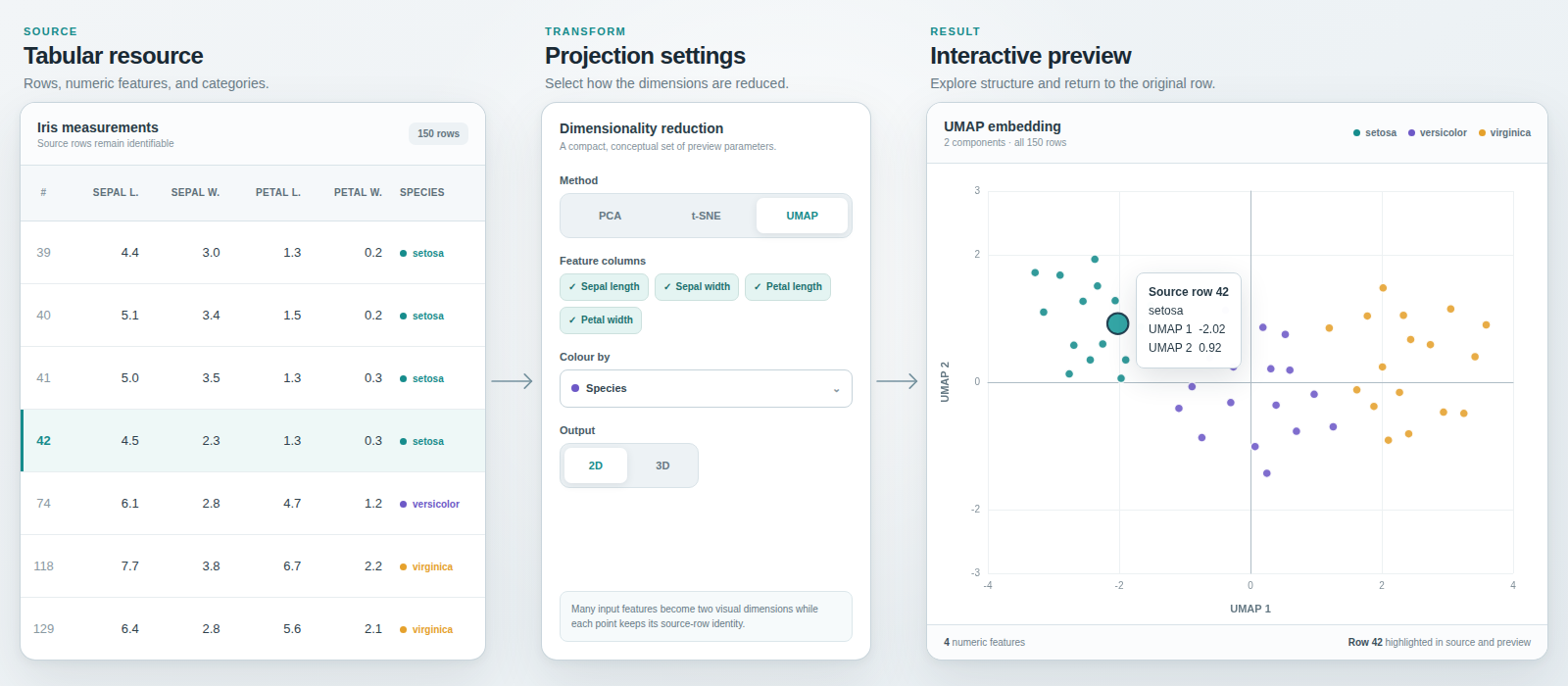

CKAN resource view for bounded dimensionality-reduction previews of tabular data. It supports PCA, t-SNE, and UMAP; interactive ECharts and static Matplotlib rendering; configurable feature, colour, and tooltip fields; CSV export; Redis caching; and CKAN RQ background jobs.

Read the documentation in this repository:

• Installation and compatibility
• Usage
• Configuration
• Operations and troubleshooting
• Workload budgets
• Changelog

Install

Activate the CKAN virtual environment and install the extension:

git clone https://github.com/DataShades/ckanext-dimred.git
cd ckanext-dimred
pip install .

Enable the plugin in the final applicable CKAN configuration layer:

ckan.plugins = ... dimred

Run a CKAN worker for uncached previews:

ckan -c /path/to/ckan.ini jobs worker dimred

Development

pip install -e '.[dev]'
pytest --ckan-ini=test_config/test.ini

Run the local static checks after installing JavaScript dependencies:

npm ci
ruff check ckanext/dimred
python scripts/typecheck.py
npm run lint:js

Browser tests additionally require Chromium and three terminals:

playwright install --with-deps chromium

In the first terminal, start CKAN:

ckan -c test_config/test.ini run -t

In the second terminal, start the DimRed worker:

ckan -c test_config/test.ini jobs worker dimred

In the third terminal, run Playwright:

pytest --ckan-ini=test_config/test.ini -m playwright --browser chromium \
  --base-url=http://127.0.0.1:5000 ckanext/dimred/tests/e2e

Build the documentation locally:

pip install -e '.[docs]'
mkdocs build --strict

Regenerate the changelog after installing the development dependencies:

make changelog

License

AGPL-3.0-or-later
